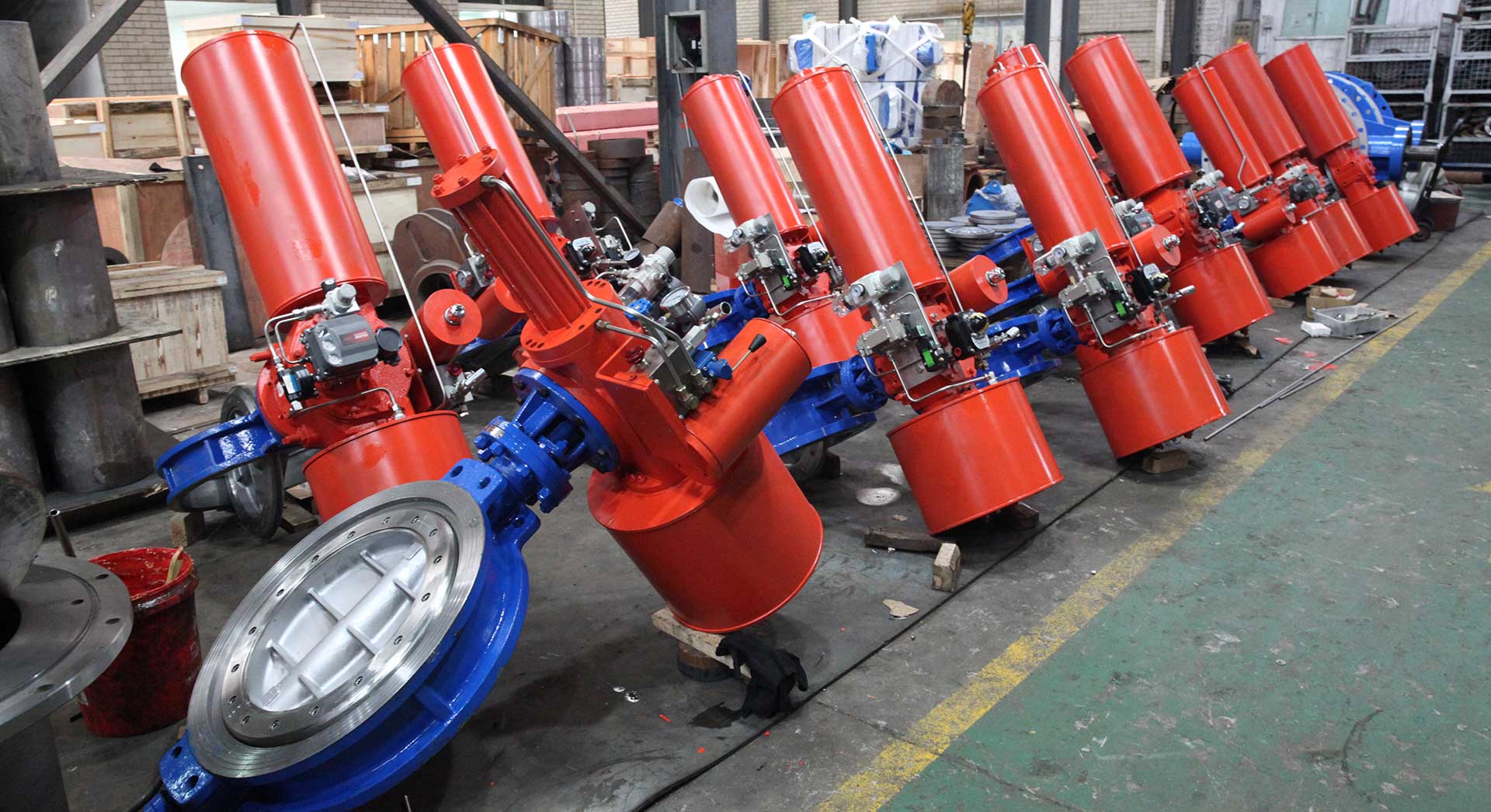

The G Series valve actuators represent a high-performance pneumatic/hydraulic actuator product line from B&D. Featuring innovative engineering and a modular design philosophy, they support various module combinations including pneumatic, hydraulic, and manual options, enabling flexible configuration based on actual operating conditions. Specifically engineered for valves requiring 90-degree rotation—such as ball valves, butterfly valves, and plug valves—this series delivers unique, stable, and reliable performance to meet demanding requirements across diverse industrial environments. The double-acting actuator offers a broader output torque range, accommodating applications with varying torque requirements.

Product Main Dimensions

Specifications: G01009–G8028, GF01009–GF1040

Model Meaning: For example, G01009

G—Pneumatic actuator type, F—Asymmetric fork, 01—Gearbox model, 009—Cylinder bore diameter (inches)

Rotation Angle: 0° to 90°

Air Supply Range: 0.3 to 0.7 MPa

Operating Pressure: 20 MPa

Air Port: Compliant with NRMAR standard

Output Torque: Double-acting 616 to 330,000 Nm

Actuation Type: Double-acting

Ambient Temperature: Standard Type: -20°C to +80°C

                                  High-Temperature Type: -15°C to +150°C

                                  Low-Temperature Type: -40°C to +80°C

Must be confirmed at time of order!

Solenoid Valve Power Supply: AC220V or DC24V (also available per customer requirements)

For specific output torque values, please refer to the detailed torque output table below.
