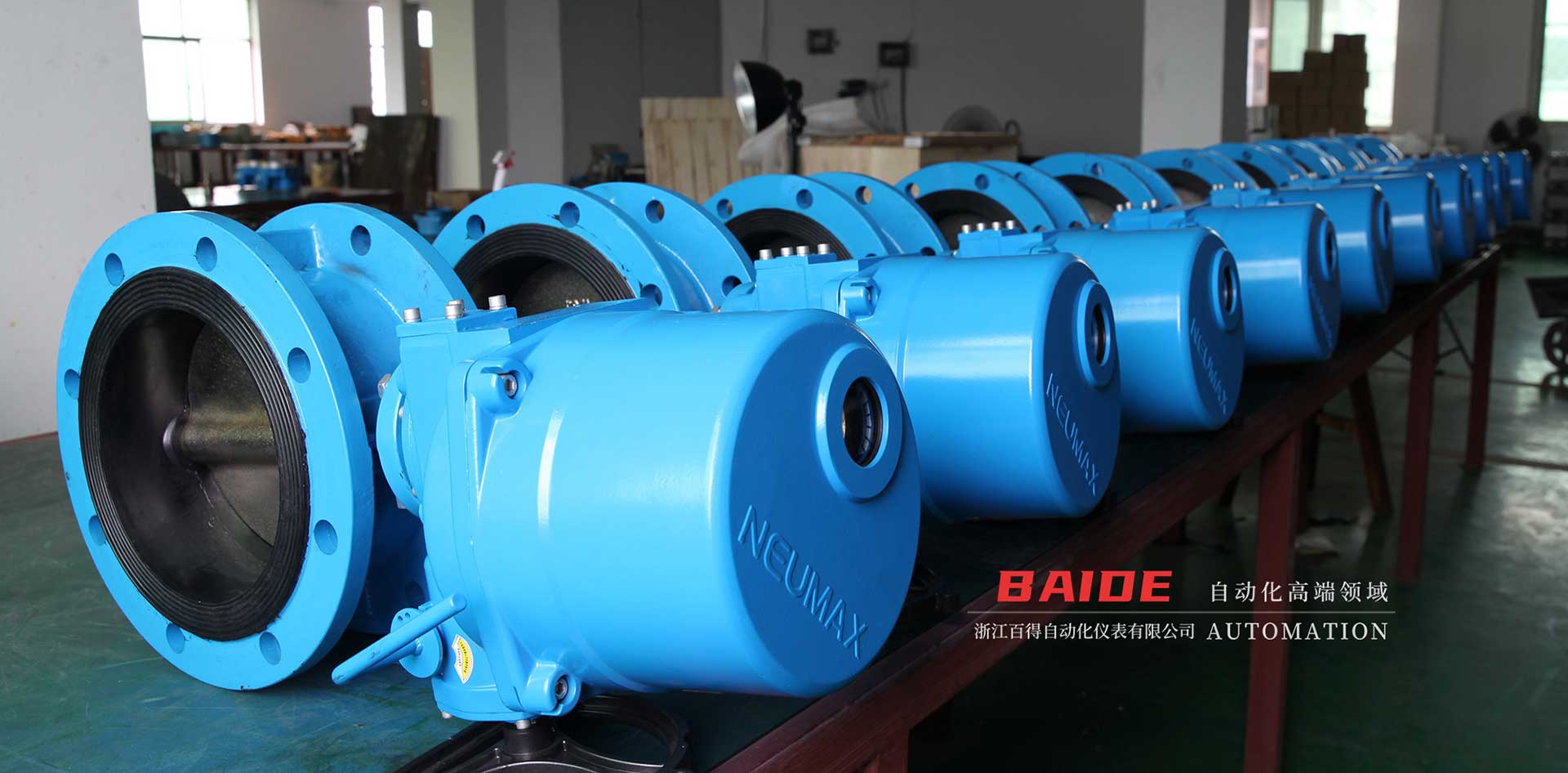

Electric flange butterfly valve can be divided into electric regulating flange butterfly valve and switching type; also according to the working condition, choose explosion-proof electric flange butterfly valve and non-explosion-proof type: it is composed of flange-connected, flange butterfly valve products made of carbon steel, ductile iron, stainless steel, etc. and electric actuator. Electric flange butterfly valve has high safety factor, better sealing performance of flange-connected pipeline, easy maintenance and easy replacement.

Product Main Dimensions

Nominal diameter: DN50~800mm

Connection: flange

Actuator selection: QT series, QH series

Control mode: switch type (electric switch, switch), regulating type, field control integration intelligent type, explosion-proof type

Nominal pressure: PN6, 10, 16bar (if higher pressure order)

Power supply voltage: AC220V, AC380V, DC24V (other special)

Sealing form: soft seal, hard seal

Ambient temperature: standard : -20~80°C

Protection level: IP55, IP65, IP67

Valve body material: carbon steel ( c ), stainless steel ( P4, P6 ), ductile iron ( Q ).

Product Main Dimensions
