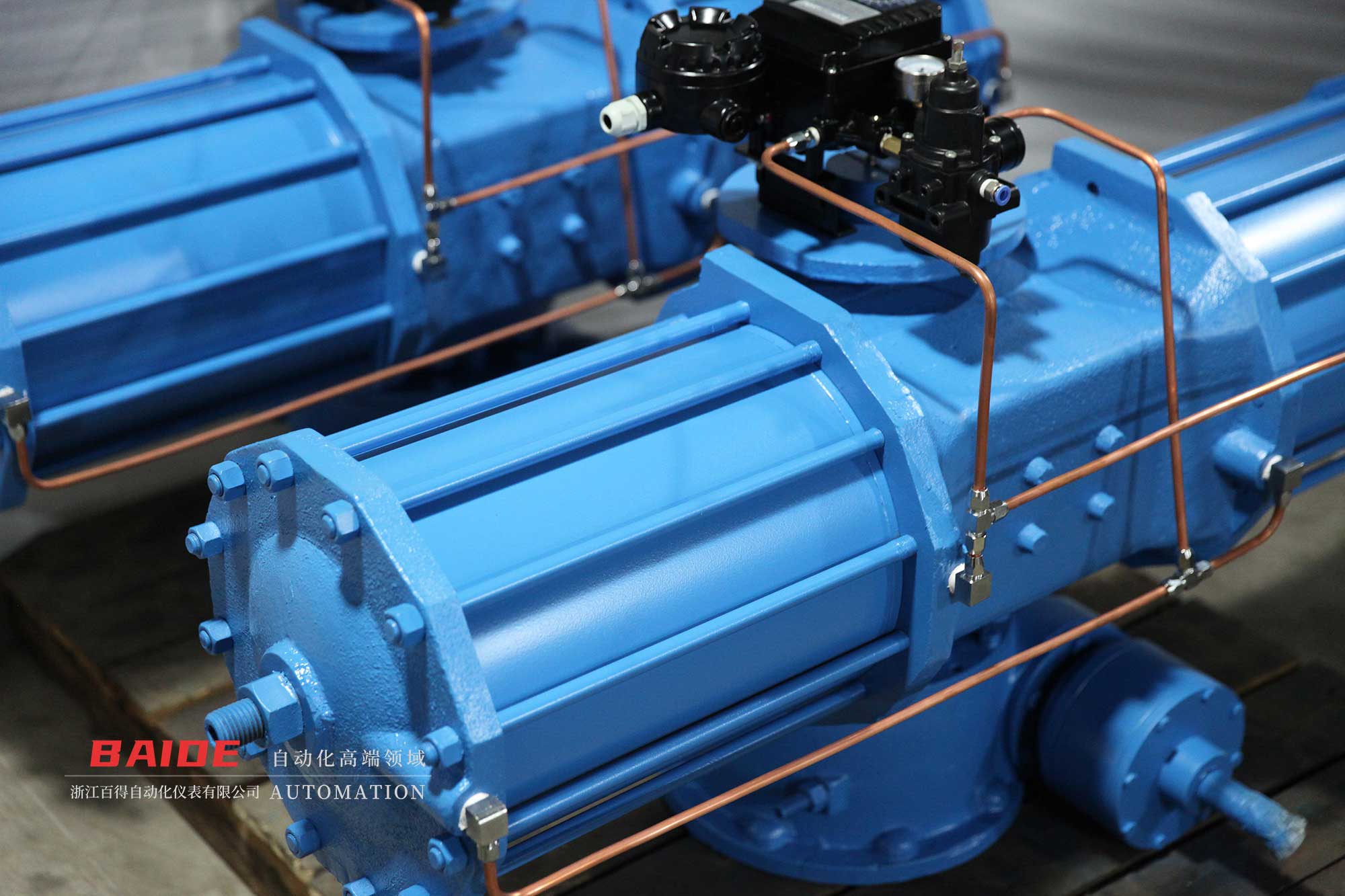

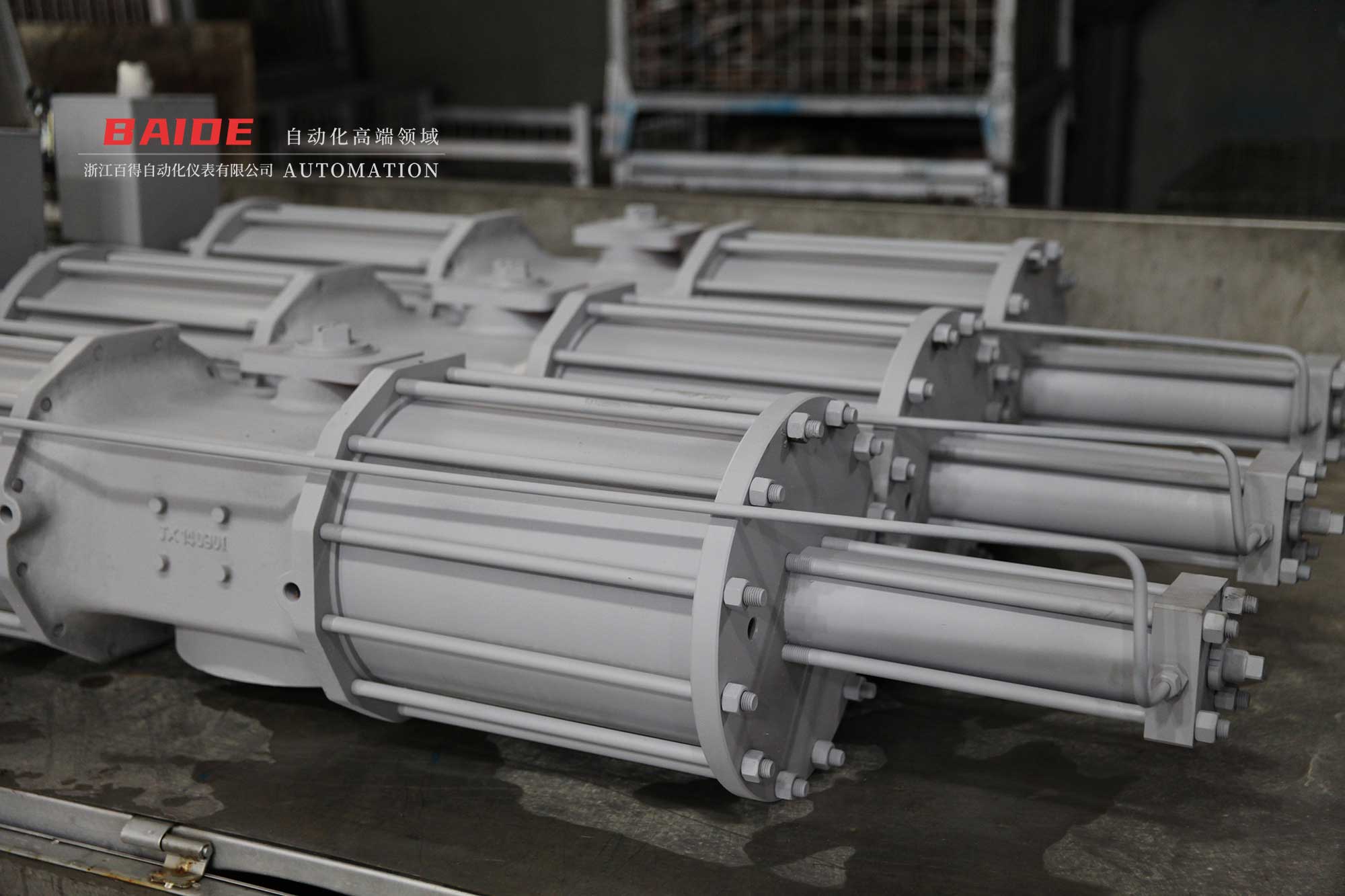

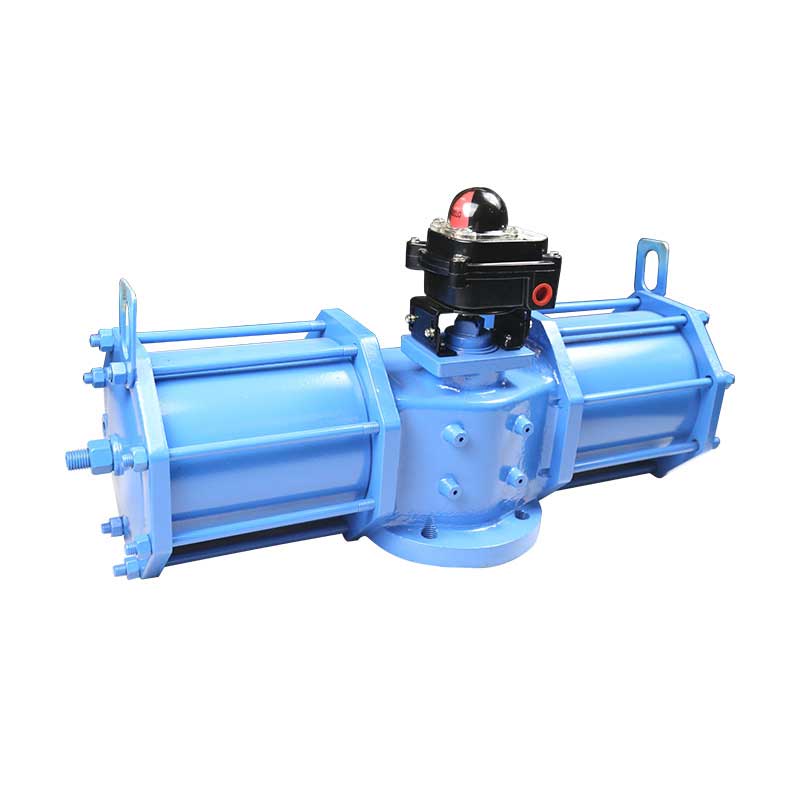

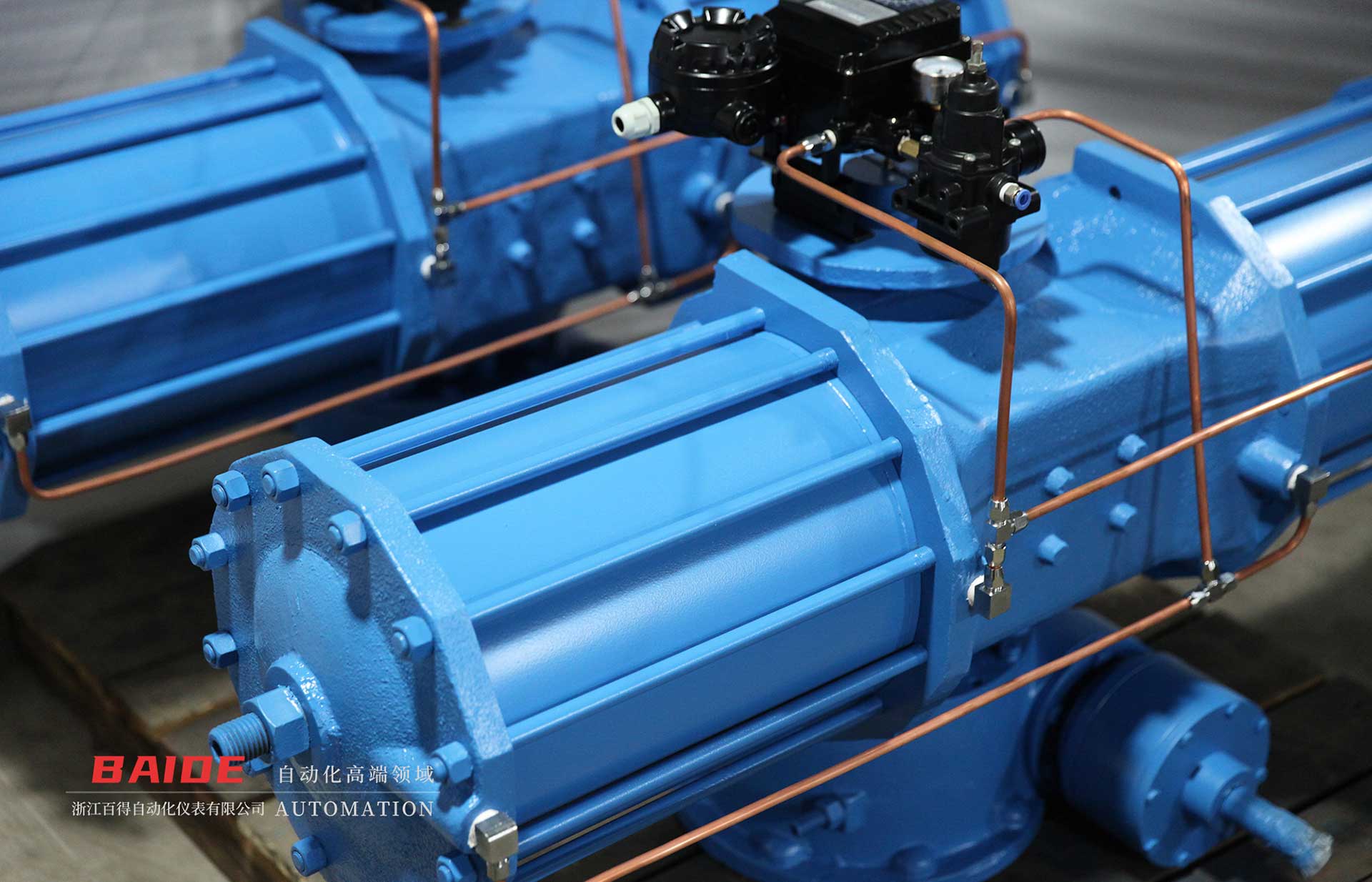

AW Series Double Action Pneumatic Actuator

Overview

The AW scotch yoke actuators of Zhejiang Baide Automation are divided into two forms: single-acting and double-acting; also could open and close with 90° swing. We have the production capacity of all models and specifications, and can also customize non-standard pneumatic actuator products to achieve special effects according to customer requirements. Zhejiang Baide has exquisite processing technology and high standard material selection requirements to ensure the performance and long-term stability of the products.

AW Series Double Action Pneumatic Actuator

Product Main Dimensions

Model: AW13~AW700

Model Meaning: AW—Pneumatic actuator type, 13—Cylinder bore diameter

Working Stroke: 90°±5°

End Adjustment: ±5°

Suitable Air Supply: 0.4～0.7MPa (Maximum 1.0MPa)

Output Torque: 599～156000Nm (Output torque varies with supply pressure)

Operation Type: Double-acting

Ambient Temperature:

Standard Type: -20°C to 80°C

High-Temperature Type: -15°C to 180°C

Low-Temperature Type: -50°C to 80°C

Must be confirmed at time of order!

Solenoid Valve Power Supply: AC220V or DC24V (Customizable upon request)

AW Double-action Output Torque(Nm)
Model	Air Source Pressure Mpa
	0.3MPa		0.4MPa		0.5MPa		0.6MPa		0.7MPa
	Start/Ends	Running torque	Start/Ends	Running torque	Start/Ends	Running torque	Start/Ends	Running torque	Start/Ends	Running torque


AW13	599	355	799	474	999	592	1198	711
AW17	1285	763	1714	1017	2142	1271	2570	1525
AW20A	1601	1130	2135	1507	2669	1884	3203	2260
AW20	2866	1701	3821	2269	4777	2836	5730	3400
AW25	4918	2919	6558	3892	7869	4865	9837	5838
AW28	6871	4080	9162	5440	11453	6800	13740	8160
AW355	14000	8310	18670	11080	23337	13850	28005	16620	32672	19390
AW490	32550	17250	43400	23000	54250	28750	65100	34500	75950	40250
AW600	49305	29580	65740	39440	82175	49300	98610	59160	115045	69020
AW700	67048	38180	89400	50910	111750	63648	134100	76377	156450	89107

Product Main Dimensions

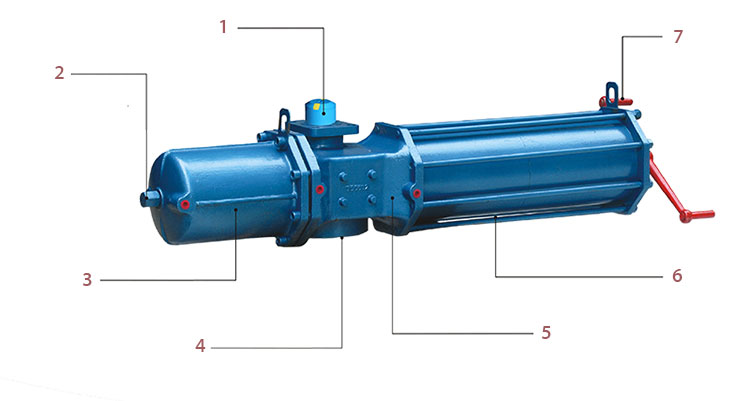

AW配件图
Parts and material
NO.	Spare Part
1	Output shaft
2	Adjustable thread
3	Cylinder body
4	Connection size
5	Cylinder block
6	Spring steel
7	Hand lever

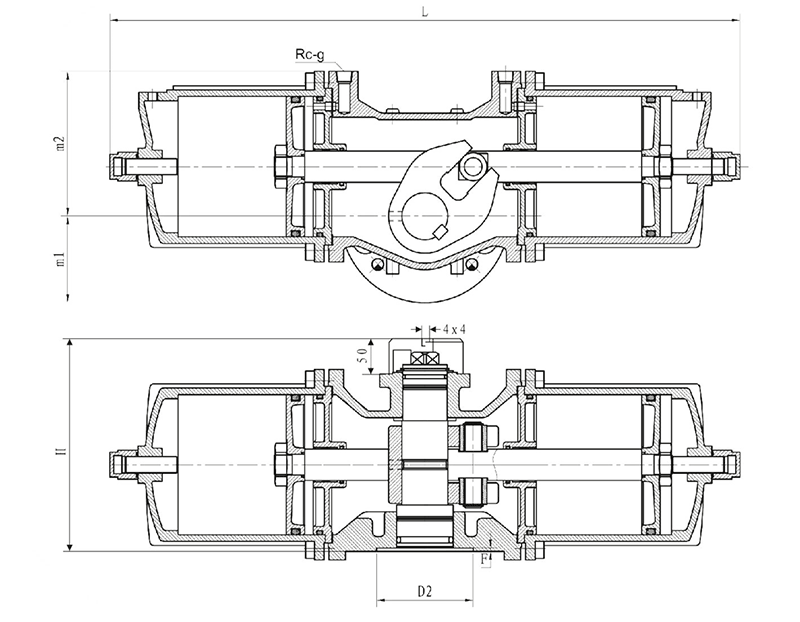

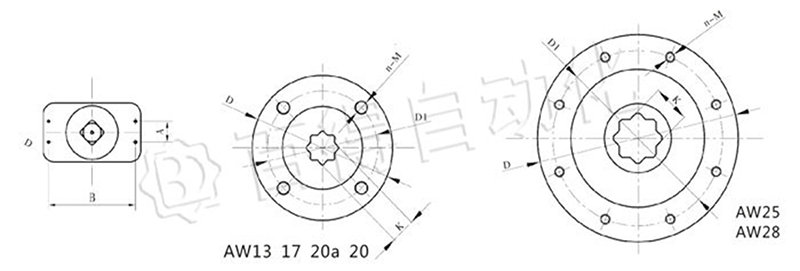

AW13~AW28 Double-action External Dimension
Model	L	H	Air interface Rc-g	m1	m2	D	D1	n-M	K	D2	F	A	B

AW13	593	185	3-1/4^〃	88	132	φ175	φ140	4-M16	□27 Depth 30	φ100	4	30	80

AW17	782	240	3-3/8^〃	105	175	φ205	φ165	4-M20	□36 Depth 40	φ120	4	30	130

AW20A	888	240	3-3/8^〃	105	175	φ205	φ165	4-M20	□36 Depth 40	φ120	4	30	130

AW20	1098	285	3-3/8^〃	115	232	φ230	φ165	4-M20	□46 Depth 50	φ130	4	30	130

AW25	1309	360	3-1/2^〃	150	278	φ300	φ254	8-M16	□55 Depth 60	φ200	4	30	130

AW28	1427	360	3-1/2^〃	150	300	φ350	φ298	8-M20	□55 Depth 60	φ230	4	30	130

AW355~AW700 Double-action External Dimension
Model	L	L1	B	B1	m1	m2	D	D1	D2	d	h	b	8-M	Air interface Rc-g
Model	L	L1	B	B1	m1	m2	D	D1	D2	d	h	b	8-M	Air interface Rc-g
AW355	1926	963	440	440	175	370	350	298	230	100	106.4	28	8-M20	RC1/2
AW490	2200	1100	572	572	200	466	415	356	260	120	127.4	32	8-M30	RC3/4
AW600	2610	1305	700	700	250	570	475	406	300	140	148.4	36	8-M36	RC3/4
AW700	2610	1305	800	800	250	620	475	406	300	150	158.4	36	8-M36	RC1
